525W丨530W丨535W丨540W丨545W

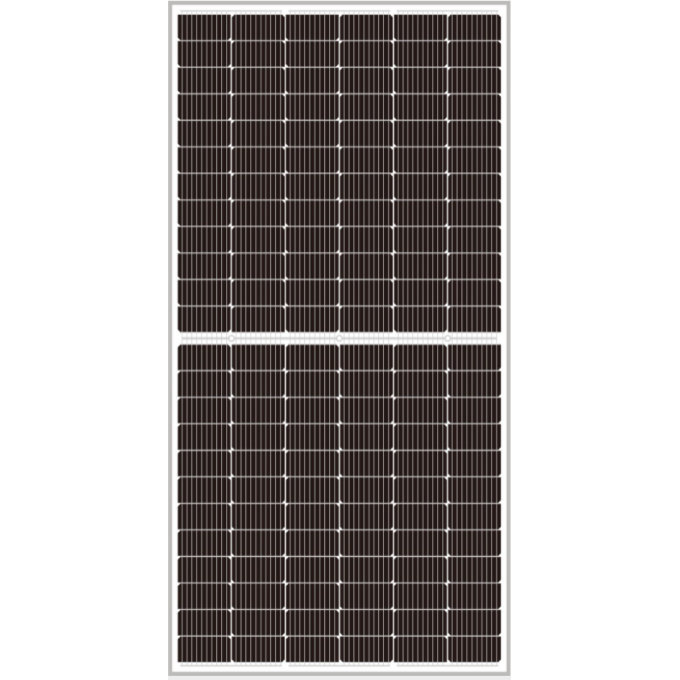

ZXM7-SPLDD144 520~545W
10BB Half-cell Bifacial Light-weight Double Glass Monocrystalline PERC PV Module

525~545W Tier 1 Bifacial Double Glass
525W丨530W丨535W丨540W丨545W
  • Tier 1. ZNShine Solar is a BNEF Tier1 module manufacturer with over 32 years of manufacturing excellence and 6 GW module production capacity.
  • Anti PID. Limited power degradation caused by PID effect is guaranteed under the strict testing condition for mass production
  • 12 years product guarantee and 30 years output guarantee
  • 0.5% annual degradation after the first year
  • More power output in weak light condition, such as haze, cloudy and early morning
Technical Specifications

ELECTRICAL CHARACTERISTICS 丨 STC*

  • Nominal power watt Pmax*
    520W
  • Power output tolerance Pmax
    0~+3%
  • Maximum power voltage Vmp
    40.7V
  • Maximum power current Imp
    12.79A
  • Open circuit voltage Voc
    49.00V
  • Short circuit current Isc
    13.53A
  • Module efficiency
    20.34%

ELECTRICAL CHARACTERISTICS 丨 NMOT*

  • Maximum power Pmax
    388.80Wp
  • Maximum power voltage Vmpp
    37.90V
  • Maximum power current Impp
    10.26A
  • Open circuit voltage Voc
    45.80V
  • Short circuit current Isc
    10.93A

MECHANICAL DATA

  • Solar cells
    Mono PERC
  • Cells orientation
    144(6×24)
  • Module dimension
    2256×1133×35 mm(with frame)
  • Weight
    33.5 kg
  • Glass
    2.0 mm+2.0mm, high transmission, AR coated heat strengthened glass
  • Junction box
    IP 68,3 diodes
  • Cables
    4 mm² ,350 mm
  • Connectors
    MC4-compatible

TEMPERATURE RATINGS

  • NMOT
    44℃ ±2℃
  • Temperature coefficient of Pmax
    -0.35%/℃
  • Temperature coefficient of Voc
    -0.29%/℃
  • Temperature coefficient of Isc
    0.05%/℃
  • Referbifacial factor
    70±5%

WORKING CONDITIONS

  • Maximum system voltage
    1500 V DC
  • Operating temperature
    -40℃~+85℃
  • Maximum series fuse
    30 A
  • Maximum load(snow/wind)
    5400 Pa / 2400 Pa

PACKAGING

  • Quantity per pallet
    30 pcs
  • Quantity per 40ft HQ container
    600 pcs

ELECTRICAL CHARACTERISTICS 丨 STC*

  • Nominal power watt Pmax*
    525W
  • Power output tolerance Pmax
    0~+3%
  • Maximum power voltage Vmp
    40.90V
  • Maximum power current Imp
    12.85A
  • Open circuit voltage Voc
    49.20V
  • Short circuit current Isc
    13.59A
  • Module efficiency
    20.54%

ELECTRICAL CHARACTERISTICS 丨 NMOT*

  • Maximum power Pmax
    392.70Wp
  • Maximum power voltage Vmpp
    38.00V
  • Maximum power current Impp
    10.33A
  • Open circuit voltage Voc
    46.00V
  • Short circuit current Isc
    10.98A

MECHANICAL DATA

  • Solar cells
    Mono PERC
  • Cells orientation
    144(6×24)
  • Module dimension
    2256×1133×35 mm (with frame)
  • Weight
    33.5 kg
  • Glass
    2.0 mm+2.0mm, high transmission, AR coated heat strengthened glass
  • Junction box
    IP 68,3 diodes
  • Cables
    4 mm² ,350 mm
  • Connectors
    MC4-compatible

TEMPERATURE RATINGS

  • NMOT
    44℃ ±2℃
  • Temperature coefficient of Pmax
    -0.35%/℃
  • Temperature coefficient of Voc
    -0.29%/℃
  • Temperature coefficient of Isc
    0.05%/℃
  • Referbifacial factor
    70±5%

WORKING CONDITIONS

  • Maximum system voltage
    1500 V DC
  • Operating temperature
    -40℃~+85℃
  • Maximum series fuse
    30 A
  • Maximum load(snow/wind)
    5400 Pa / 2400 Pa

PACKAGING

  • Quantity per pallet
    30 pcs
  • Quantity per 40ft HQ container
    600 pcs

ELECTRICAL CHARACTERISTICS 丨 STC*

  • Nominal power watt Pmax*
    530W
  • Power output tolerance Pmax
    0~+3%
  • Maximum power voltage Vmp
    41.10V
  • Maximum power current Imp
    12.91A
  • Open circuit voltage Voc
    49.40V
  • Short circuit current Isc
    13.65A
  • Module efficiency
    20.74%

ELECTRICAL CHARACTERISTICS 丨 NMOT*

  • Maximum power Pmax
    396.40Wp
  • Maximum power voltage Vmpp
    38.20V
  • Maximum power current Impp
    10.38A
  • Open circuit voltage Voc
    46.20V
  • Short circuit current Isc
    11.02A

MECHANICAL DATA

  • Solar cells
    Mono PERC
  • Cells orientation
    144(6×24)
  • Module dimension
    2256×1133×35 mm(with frame)
  • Weight
    33.5 kg
  • Glass
    2.0 mm+2.0mm, high transmission, AR coated heat strengthened glass
  • Junction box
    IP 68,3 diodes
  • Cables
    4 mm² ,350 mm
  • Connectors
    MC4-compatible

TEMPERATURE RATINGS

  • NMOT
    44℃ ±2℃
  • Temperature coefficient of Pmax
    -0.35%/℃
  • Temperature coefficient of Voc
    -0.29%/℃
  • Temperature coefficient of Isc
    0.05%/℃
  • Referbifacial factor
    70±5%

WORKING CONDITIONS

  • Maximum system voltage
    1500 V DC
  • Operating temperature
    -40℃~+85℃
  • Maximum series fuse
    30 A
  • Maximum load(snow/wind)
    5400 Pa / 2400 Pa

PACKAGING

  • Quantity per pallet
    30 pcs
  • Quantity per 40ft HQ container
    600 pcs

ELECTRICAL CHARACTERISTICS 丨 STC*

  • Nominal power watt Pmax*
    535W
  • Power output tolerance Pmax
    0~+3%
  • Maximum power voltage Vmp
    41.30V
  • Maximum power current Imp
    12.96A
  • Open circuit voltage Voc
    49.60V
  • Short circuit current Isc
    13.71A
  • Module efficiency
    20.93%

ELECTRICAL CHARACTERISTICS 丨 NMOT*

  • Maximum power Pmax
    399.90Wp
  • Maximum power voltage Vmpp
    38.40V
  • Maximum power current Impp(A)
    10.42A
  • Open circuit voltage Voc
    46.30V
  • Short circuit current Isc
    11.07A

MECHANICAL DATA

  • Solar cells
    Mono PERC
  • Cells orientation
    144(6×24)
  • Module dimension
    2256×1133×35 mm(with frame)
  • Weight
    33.5 kg
  • Glass
    2.0 mm+2.0mm, high transmission, AR coated heat strengthened glass
  • Junction box
    IP 68,3 diodes
  • Cables
    4 mm² ,350 mm
  • Connectors
    MC4-compatible

TEMPERATURE RATINGS

  • NMOT
    44℃ ±2℃
  • Temperature coefficient of Pmax
    -0.35%/℃
  • Temperature coefficient of Voc
    -0.29%/℃
  • Temperature coefficient of Isc
    0.05%/℃
  • Referbifacial factor
    70±5%

WORKING CONDITIONS

  • Maximum system voltage
    1500 V DC
  • Operating temperature
    -40℃~+85℃
  • Maximum series fuse
    30 A
  • Maximum load(snow/wind)
    5400 Pa / 2400 Pa

PACKAGING

  • Quantity per pallet
    30 pcs
  • Quantity per 40ft HQ container
    600 pcs

ELECTRICAL CHARACTERISTICS 丨 STC*

  • Nominal power watt Pmax*
    540W
  • Power output Tolerance Pmax
    0~+3%
  • Maximum power voltage Vmp
    41.50V
  • Maximum power current Imp
    13.02A
  • Open circuit voltage Voc
    49.80V
  • Short circuit current Isc
    13.77A
  • Module efficiency
    21.13%

ELECTRICAL CHARACTERISTICS 丨 NMOT*

  • Maximum power Pmax
    403.60Wp
  • Maximum power voltage Vmpp
    38.50V
  • Maximum power current Impp
    10.47A
  • Open circuit voltage Voc
    46.50V
  • Short circuit current Isc
    11.12A

MECHANICAL DATA

  • Solar cells
    Mono PERC
  • Cells orientation
    144(6×24)
  • Module dimension
    2256×1133×35 mm(with frame)
  • Weight
    33.5 kg
  • Glass
    2.0 mm+2.0mm, high transmission, AR coated heat strengthened glass
  • Junction box
    IP 68,3 diodes
  • Cables
    4 mm² ,350 mm
  • Connectors
    MC4-compatible

TEMPERATURE RATINGS

  • NMOT
    44℃ ±2℃
  • Temperature coefficient of Pmax
    -0.35%/℃
  • Temperature coefficient of Voc
    -0.29%/℃
  • Temperature coefficient of Isc
    0.05%/℃
  • Referbifacial factor
    70±5%

WORKING CONDITIONS

  • Maximum system voltage
    1500 V DC
  • Operating temperature
    -40℃~+85℃
  • Maximum series fuse
    30 A
  • Maximum load(snow/wind)
    5400 Pa / 2400 Pa

PACKAGING

  • Quantity per pallet
    30 pcs
  • Quantity per 40ft HQ container
    600 pcs

ELECTRICAL CHARACTERISTICS 丨 STC*

  • Nominal power watt Pmax*
    545W
  • Power output tolerance Pmax
    0~+3%
  • Maximum power voltage Vmppp
    41.70V
  • Maximum power current Imp
    13.07A
  • Open circuit voltage Voc
    50.00V
  • Short circuit current Isc
    13.83A
  • Module efficiency
    21.32%

ELECTRICAL CHARACTERISTICS 丨 NMOT*

  • Maximum power Pmax
    406.80Wp
  • Maximum power voltage Vmpp
    38.80V
  • Maximum power current Impp
    10.49A
  • Open circuit voltage Voc
    46.70V
  • Short circuit current Isc
    11.17A

MECHANICAL DATA

  • Solar cells
    Mono PERC
  • Cells orientation
    144(6×24)
  • Module dimension
    2256×1133×35 mm(with frame)
  • Weight
    33.5 kg
  • Glass
    2.0 mm+2.0mm, high transmission, AR coated heat strengthened glass
  • Junction box
    IP 68,3 diodes
  • Cables
    4 mm² ,350 mm
  • Connectors
    MC4-compatible

TEMPERATURE RATINGS

  • NMOT
    44℃ ±2℃
  • Temperature coefficient of Pmax
    -0.35%/℃
  • Temperature coefficient of Voc
    -0.29%/℃
  • Temperature coefficient of Isc
    0.05%/℃
  • Referbifacial factor
    70±5%

WORKING CONDITIONS

  • Maximum system voltage
    1500 V DC
  • Operating temperature
    -40℃~+85℃
  • Maximum series fuse
    30 A
  • Maximum load(snow/wind)
    5400 Pa / 2400 Pa

PACKAGING

  • Quantity per pallet
    30 pcs
  • Quantity per 40ft HQ container
    600 pcs
